| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Center Frequency: | 0.054 GHz |
|---|
| Insertion Loss: | 0.5 dB |
|---|
| Bandwidth: | 0.068 GHz |
|---|
| Rejection: | -50 dBc @ 0.01 and 0.1 GHz |
|---|
| Connectors: | SMA (F) |
|---|

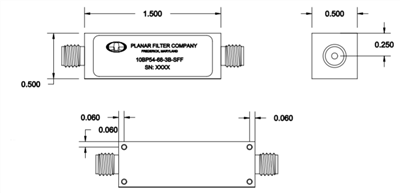

| Size: | 1.5" x 0.5" x 0.5" |
|---|
| VSWR in the Pass Band: | 1.5:1 |
|---|
| Insertion Loss (Pass Band): | 0.5 dB |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -40 °C to +85 °C |
|---|
| Non-Operating Temperature: | -40 °C to +100 °C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
