3BP66D25-10-CD-SFF
Preliminary
Bandpass Filter

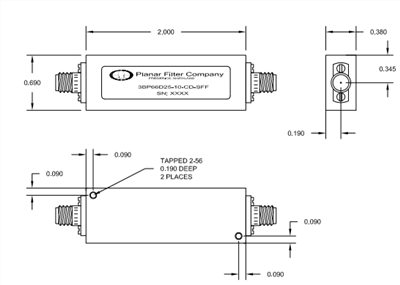

Quantic PMI Model 3BP66D25-10-CD-SFF is a bandpass filter centered at 0.06625 GHz with a nominal bandwidth is 0.01 GHz. Package size is 2.00" x 0.69" x 0.38" with SMA female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Center Frequency: | 0.06625 GHz |
|---|
| Insertion Loss: | 2.25 dB |
|---|
| Bandwidth: | 0.01 GHz |
|---|
| Rejection: | 3 Pole Response |
|---|
| Connectors: | SMA (F) |
|---|
| Size: | 2.00" x 0.69" x 0.38" |
|---|
| VSWR in the Pass Band: | 1.5:1 |
|---|
| Insertion Loss (Pass Band): | 2.25 dB |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -40 °C to +85 °C |
|---|
| Non-Operating Temperature: | -40 °C to +100 °C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
