| General Parameters: |
|---|
| Status: | Active |
|---|
| Center Frequency: | 0.03 GHz |
|---|
| Insertion Loss: | Nominal |
|---|
| Bandwidth: | 0.004 GHz |
|---|
| Connectors: | SMA (F) |
|---|

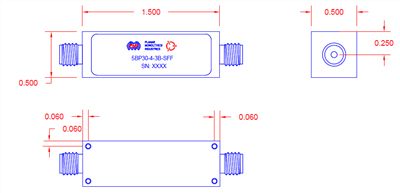

| Size: | 1.5" x 0.5" x 0.5" |
|---|
| VSWR in the Pass Band: | 1.5:1 max. |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -55 °C to +85 °C |
|---|
| Non-Operating Temperature: | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
|---|
| Fungus: | MIL-STD-810C, Method 508.2 |
|---|
