BPF-3D55G4D4G-850M-SM-2 Active

Bandpass Filter

Product Feature
Additional Documents

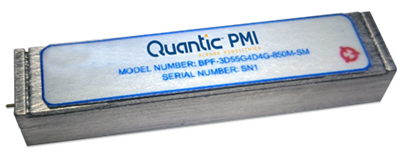

Quantic PMI Model Number BPF-3D55G4D4G-850M-SM-2 is a Bandpass Filter center frequency 3.975 with a 3.4 dB bandwidth of 3.55 to 4.4 GHz.   The filter is built in a surface mount package measuring 1.75" x 0.35" x 0.32" ideal for use in integrated modules.

Product Specifications

General Parameters:
Status: Active
Center Frequency: 3.975 GHz
Insertion Loss: 3.4 dB Max
Bandwidth: 3.55 to 4.4 GHz
Rejection: -60 dBc @ 0.1 to 3.265 GHz
-60 dBc @ 4.89 to 6 GHz
Connectors: Drop-In Filter, 0.015" Diameter RF Pin
Size: 1.75" x 0.35" x 0.32"
VSWR in the Pass Band: 1.5:1 Typ, 2.0:1 Max
Insertion Loss (Pass Band): 3.4 dB Max
Environmental Ratings:
Temperature: -40 °C to +85 °C
Non-Operating Temperature: -65 °C to +125 °C
