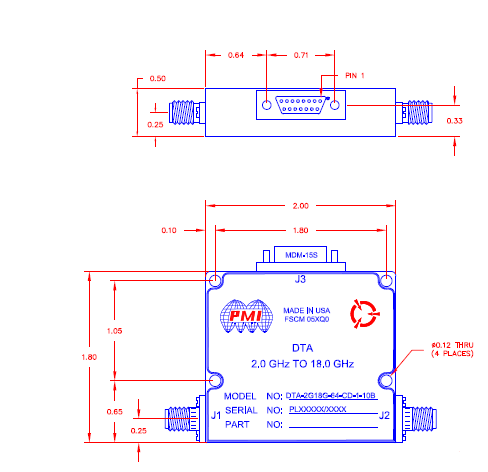

General Parameters: |
Status: | Preliminary |
Frequency Range: | 2.0 to 18.0 GHz |
Frequency Min: | 2 GHz |
Frequency Max: | 18 GHz |
Insertion Loss: | 4.8 dB max. |
Attenuation Range: | 64 dB |
Digital Control: | 10 Bit |
Minimum Attenuation Step: | 0.06 dB |
VSWR: | 2.0:1 max. |
Operating Input Power: | 15 dBm typ. |
Survival Power: | 1 W Average from -65ºC to +25ºC |
Attenuation Flatness: | ±1.0 dB typ., ±1.25 dB typ., ±3.0 dB typ. |
Attenuation Accuracy: | ±1.0 dB typ., ±1.5 dB typ., ±2.0 dB typ. |
Swiching Time (On Time): | 500 ns max. |
Swiching Time (Off Time): | 500 ns max. |
Power Supply: | +15 V @ 150 mA max. |
Weight: | 3.0 oz (85 gm) approximate |
Finish: | Painted Gray |
Logic Input: | -0.3 to +0.8 V Logic "0" (Bit Off), +2.0 to +5.0 V Logic "1" (Bit On) |
Connectors: | SMA (F) & 15 Pin Micro-D-FemaleShipped with mating Micro-D-Male |
Environmental Ratings: |
Operating Temperature: | -40 ºC to +85 ºC Operating |
Non-Operating Temperature: | -65 ºC to +125 ºC Non-Operating |
Humidity: | MIL-STD-202F, Method 103B Cond. B |
Shock: | MIL-STD-202F, Method 213B Cond. B |
Vibration: | MIL-STD-202F, Method 204D Cond. B |
Altitude: | MIL-STD-202F, Method 105C Cond. B |
Temperature Cycle: | MIL-STD-202F, Method 107 |
