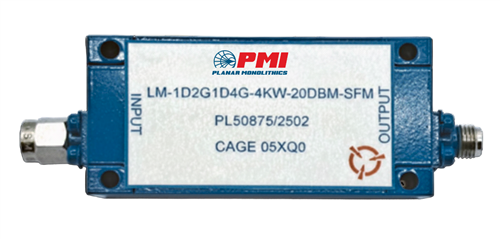

| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency: | 1.2 to 1.4 GHz |
|---|
| Frequency Min: | 1.2 GHz |
|---|
| Frequency Max: | 1.4 GHz |
|---|
| Insertion Loss: | 0.4 dB Max (-40 °C to +55 °C)
0.55 dB Max (+55 °C to +70 °C) |
|---|
| Input/Output VSWR: | 1.250:1 Min (-40 °C to +55 °C)
1.398:1 Min (+55 °C to +70 °C) |
|---|
| Power Handling: | Normal Operating Condition: 10 W Peak Max
(1 ms Pulse Width, 36% Du1y Cycle)
Overload Survival Condition: 4 kW Peak Max
(40 µs Pulse Width, 1% Du1y Cycle) |
|---|
| Input Power: | 10 W Peak Max (1 ms Pulse Width, 36% Du1y Cycle) |
|---|
| Spike Leakage: | 23 dBm Max |
|---|
| Flat Leakage: | 20 dBm Max |
|---|
| Recovery Time: | 15 µs Max (To 0.1 dB under normal operating conditions) |
|---|
| Connectors In/Out: | Input: SMA Male
Output: SMA Female |
|---|
| Size: | 2.31" x 1.10" x 0.80" |
|---|
| Finish: | Painted Blue |
|---|
| Return Loss: | 19.08 dB Min (-40 °C to +55 °C)
15.6 dB Min (+55 °C to +70 °C) |
|---|
| Input Rise Time: | 100 ns Min |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +70 °C |
|---|
| Non-Operating Temperature: | -40 °C to +85 °C |
|---|
| Vibration: | MIL-STD-810F METHOD 514.5, CATEGORY 2
3 AXES, 1 HR PER AXIS |
|---|
| Shock: | 50 g, 11 ms PULSE, 1/2 SINE WAVE
1 AXIS, 3 PULSES |
|---|
| Relative Humidity: | 95% |
|---|
| Altitude: | 10,000 FT |
|---|
