LM-20M18G-100W-15DBM-GOLD Preliminary

RF Limiter

Product Feature

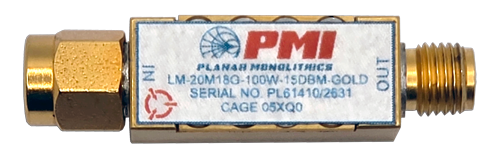

Quantic PMI Model No. LM-20M18G-100W-15DBM-GOLD is an RF Limiter that operates in the frequency range of 20 MHz to 18.0 GHz. This limiter can handle up to 100 Watts CW more than 20 MHz to 18.0 GHz, for all temperatures (-55 °C to +85 °C). The energy input provides leaks of +15 dBm maximum. This model has a low insertion loss of 2.6 dB and a maximum recovery time of 100 ns.  Model has 0.90" x 0.38" x 0.38" compact housing with SMA connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency: 0.02 to 18.0 GHz
Frequency Min: 0.02 GHz
Frequency Max: 18.0 GHz
Insertion Loss: 2.60 dB Max @ -10 dBm Input Power
Input/Output VSWR: 2.0:1 Max @ -10 dBm Input Power
Input Power: 100 W CW Max @ -55 °C to +85 °C, 1 KW Peak Min
@ +85 °C (1 µs Pulse Width, 0.1% Duty Cycle)
100 W (1 µs, 1% Duty Cycle, 10 KHz)
100 W (10 µs, 0.1% Duty Cycle, 100 Hz)
100 W (1 µs, 0.1% Duty Cycle, 1 KHz)
100 W (40 µs, 10% Duty Cycle, 2.5 KHz)
Recovery Time: 100 ns Max @ 100 W Peak Power
Connectors In/Out: SMA (M) / SMA (F)
Size: 0.90" x 0.38" x 0.38"
Finish: Gold Plated
Weight: 20 g Max
RF Power Handling: 100 W CW Max @ -55 °C to +85 °CW, 1 KW Peak Min
@ +85 °C (1 µs Pulse Width, 0.1% Duty Cycle)
100 W (1 µs, 1% Duty Cycle, 10 KHz)
100 W (10 µs, 0.1% Duty Cycle, 100 Hz)
100 W (1 µs, 0.1% Duty Cycle, 1 KHz)
100 W (40 µs, 10% Duty Cycle, 2.5 KHz)
Environmental Ratings:
Non-Operating Temperature: -62 °C to +95 °C
Humidity: 100 %
Vibration: 0.1 Inch pp or ± 10G, 5 ~ 500 Hz
(Figure 2, Sheet 1 of 3, Curve IV)
Shock: 15G, 11 ± 1 ms
Altitude: 70,000 ft
