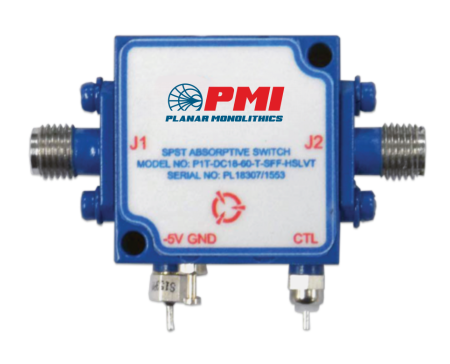

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Min: | DC |
|---|
| Frequency Max: | 18 GHz |
|---|
| Insertion Loss (Typ): | 4.5 dB |
|---|
| Isolation (Typ): | 60 dB |
|---|
| RF Leakage: | 60 dB Min (2.0 to 12.0 GHz),
70 dB Min (12.0 to 18.0 GHz) |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Switching Speed (Typ): | 6 ns |
|---|
| Configuration: | SPST |
|---|
| Frequency: | DC to 18.0 GHz |
|---|
| Isolation: | 55 dB Min (0.01 to 2.0 GHz)
60 dB Min (2.0 to 12.0 GHz),
70 dB Min (12.0 to 18.0 GHz) |
|---|
| Insertion Loss: | 4.5 dB Max - Measured 3.3 dB |
|---|
| VSWR In/Out: | 2.0:1 - Measured 1.7:1 |
|---|
| Input Power: | +20 dBm CW Max |
|---|
| Survival Power: | 1 Watt CW, 10 Watts Peak 1 µs -
Measured 1 Watt CW, 10 Watts Peak 1 µs |
|---|
| Rise Time: | 1 ns Typ, 2 ns Max - Measured ‹2 ns |
|---|
| Fall Time: | 1 ns Typ, 2 ns Max - Measured ‹2 ns |
|---|
| Delay On: | 12 ns Typ, 15 ns Max - Measured ‹12 ns |
|---|
| Delay Off: | 12 ns Typ, 15 ns Max - Measured ‹6 ns |
|---|
| Video Transient: | 20 mV P-P (300 MHz BW (2-18 GHz),
4mV P-P (20 MHz BW (2-18 GHz) |
|---|
| Control Signal: | TTL Logic "0" = On,
TTL Logic "1" = Off |
|---|
| Power Supply: | -5 V @ 25 mA Max - Measured 22 mA |
|---|
| Connectors: | SMA (F) |
|---|
| Power & Control Connector: | Solder Pin |
|---|
| Size: | 1.0" x 1.0" x 0.5" |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 ºC to +85 ºC |
|---|
| Temperature (Storage): | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
